⁂ Modular construction
⁂ Low-maintenance and robust
⁂ Fast response times for precise temperature
⁂ Medium-wave infrared heating
⁂ No cooling or reflectors required

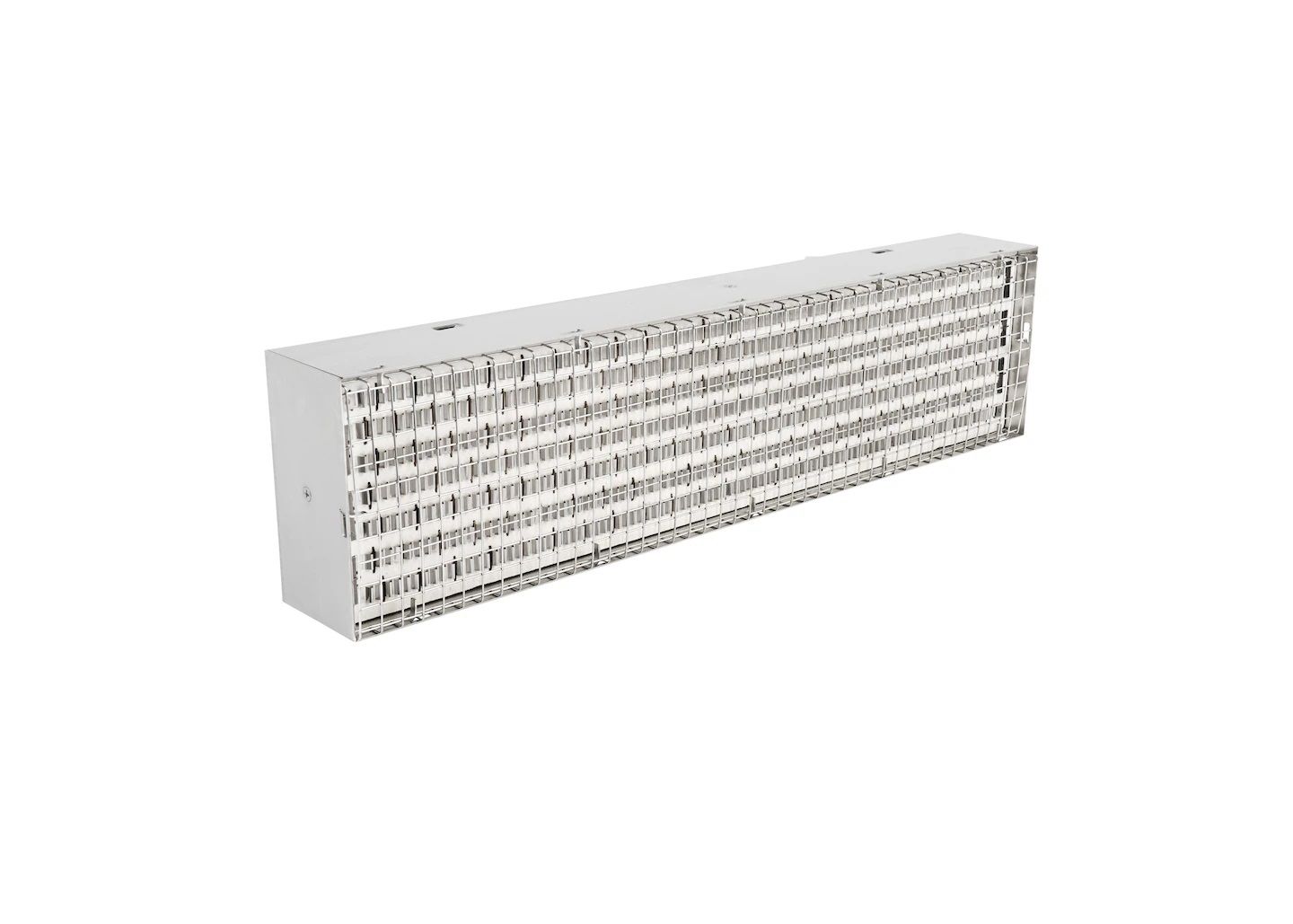

Modular and flexible Krelus heater

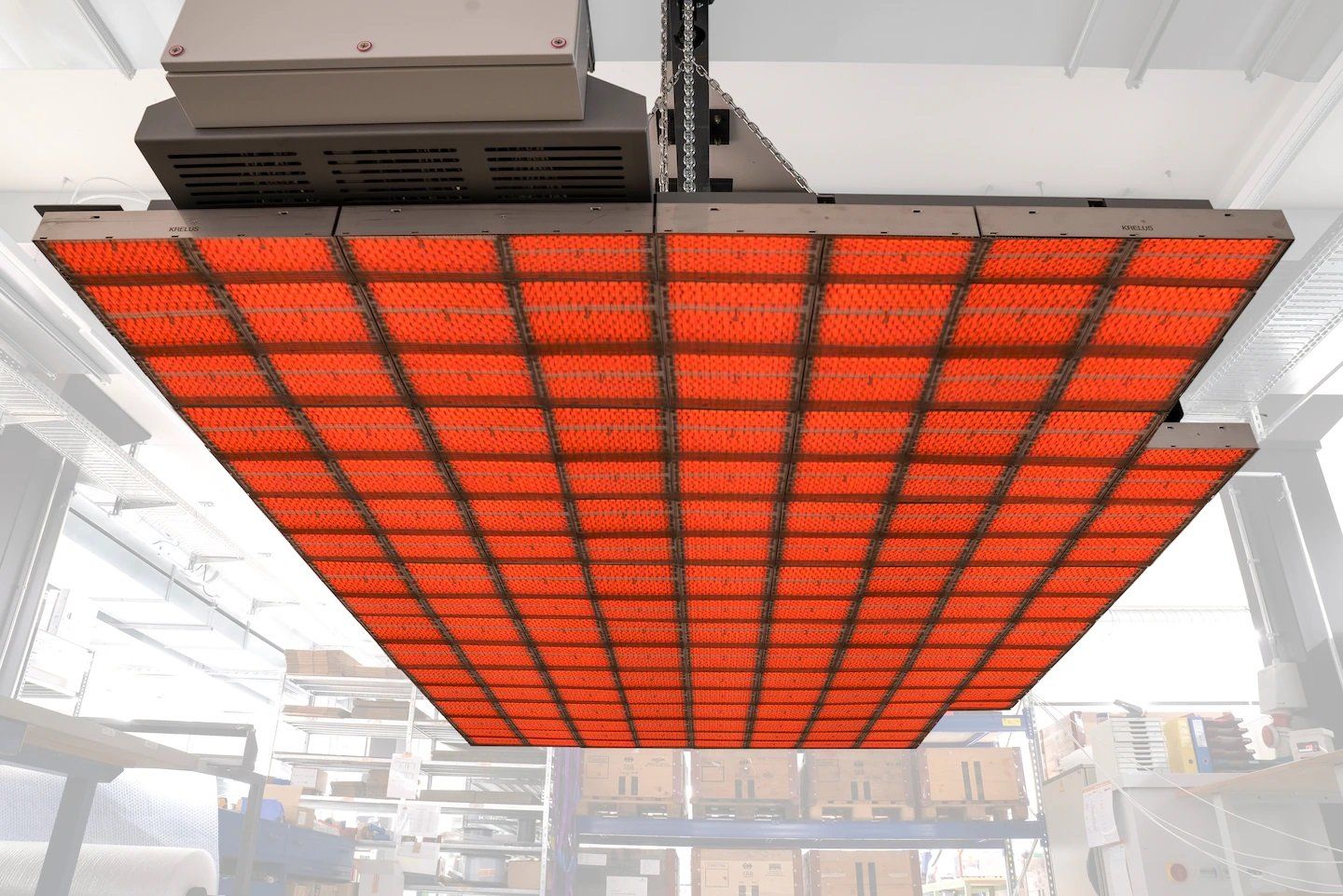

Krelus infrared heaters are well-suited for drying applications since water absorbs IR radiation in the medium-wave infrared range excellently. The KRELUS MINI heaters can be perfectly combined to make heater fields in various sizes. Due to the grid dimension, both models can be used in the same field and can be individually controlled in separate heating zones as the needed. They can also be used individually.
The variety of options aid flexibility. The MINI heaters are available in six power ratings between 1.3 and 3.6 kW per module. Thanks to their outstanding features, such as fast response time, high efficiency and robust design (to name a few), they are perfect for plastics processing applications in the automotive industry, the packaging industry, as well as in paper and printing machines. One thing all Krelus radiators have in common is that they have no moving parts, making them virtually immune to wear and thus requiring no maintenance. Nevertheless, should a defect occur in a heater field, individual heaters can be quickly and easily replaced thanks to the modular design.

TECHNICAL DATA

⁂ VOLTAGE: 200 - 240 V
⁂ FREQUENCY: 50/60 Hz
⁂ POWER: 1350 - 3600 W
⁂ POWER DENSITY: 22.0 - 58.0 kW/m²
⁂ LENGTH: 496.0 mm
⁂ WIDTH: 123.0 mm
⁂ HEIGHT: 65.0 mm
⁂ WEIGHT: 2.7 kg
⁂ APPROVALS: CE
⁂ PROTECTION CLASS (IEC 60529): IP20
⁂ PROTECTION CLASS: I

Best heat absorption
⁂ Medium-wave IR radiation for optimum absorption
⁂ Temperature infinitely variable
⁂ Power density up to 50 kW/m² respectively 32 W/in²
